ABOUT US

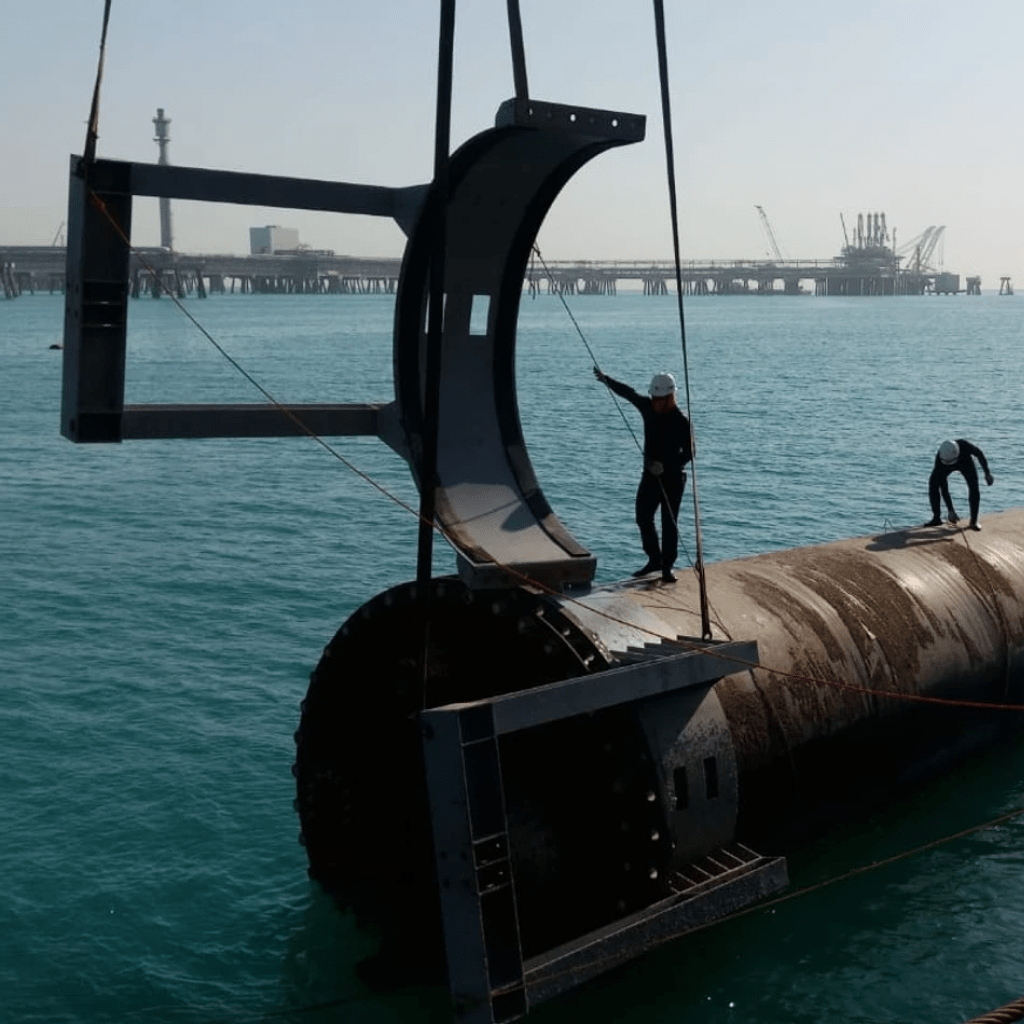

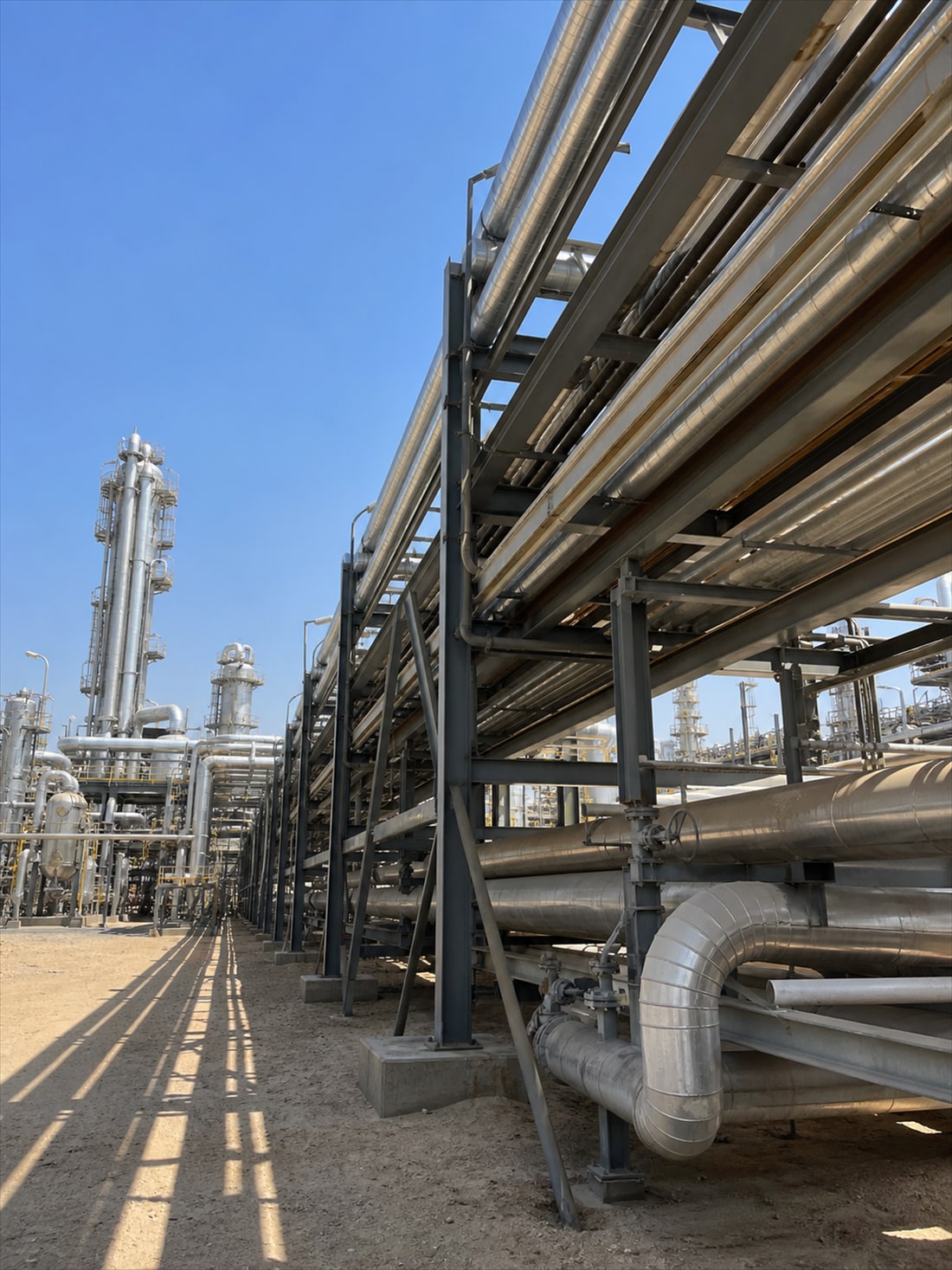

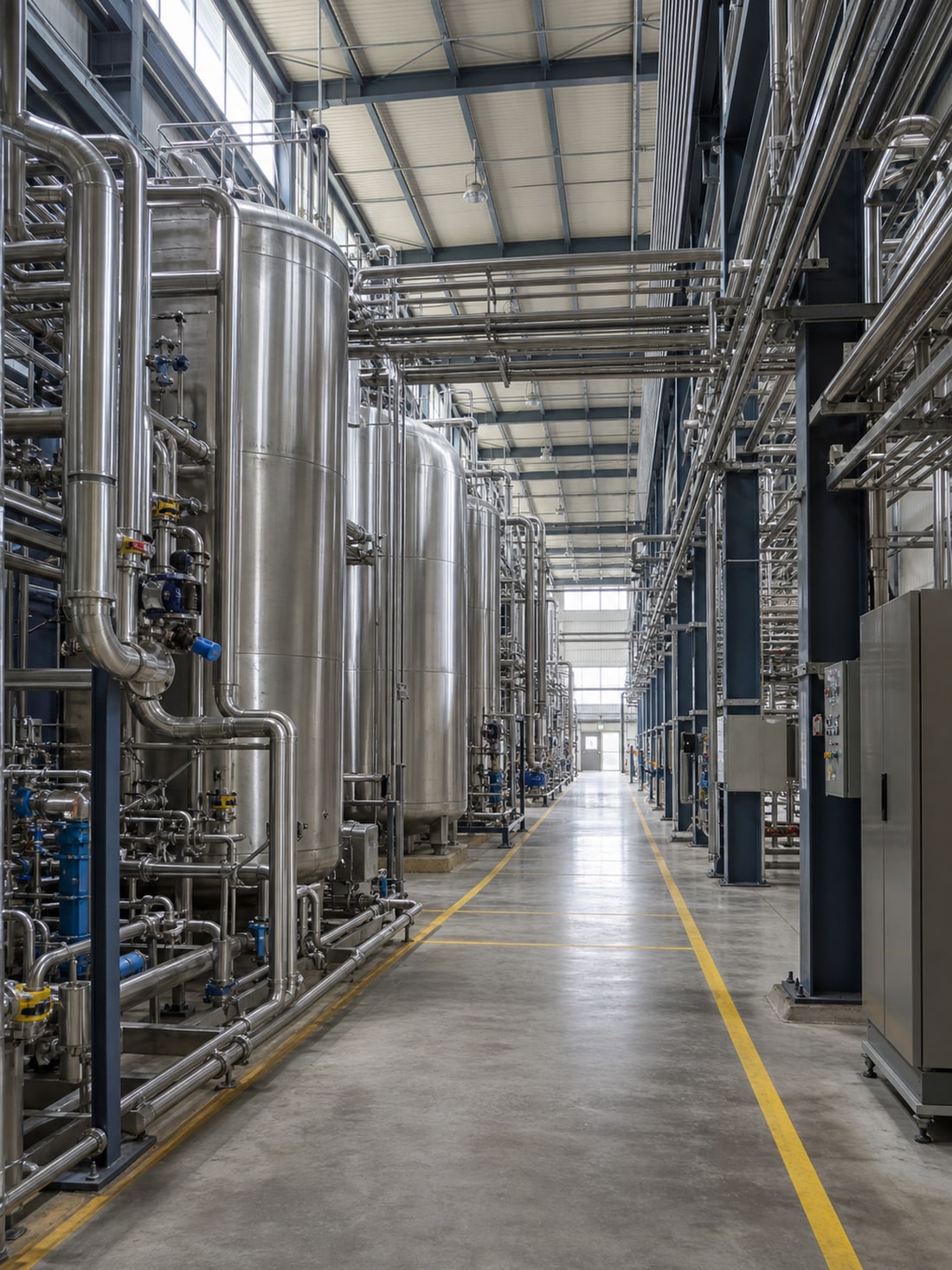

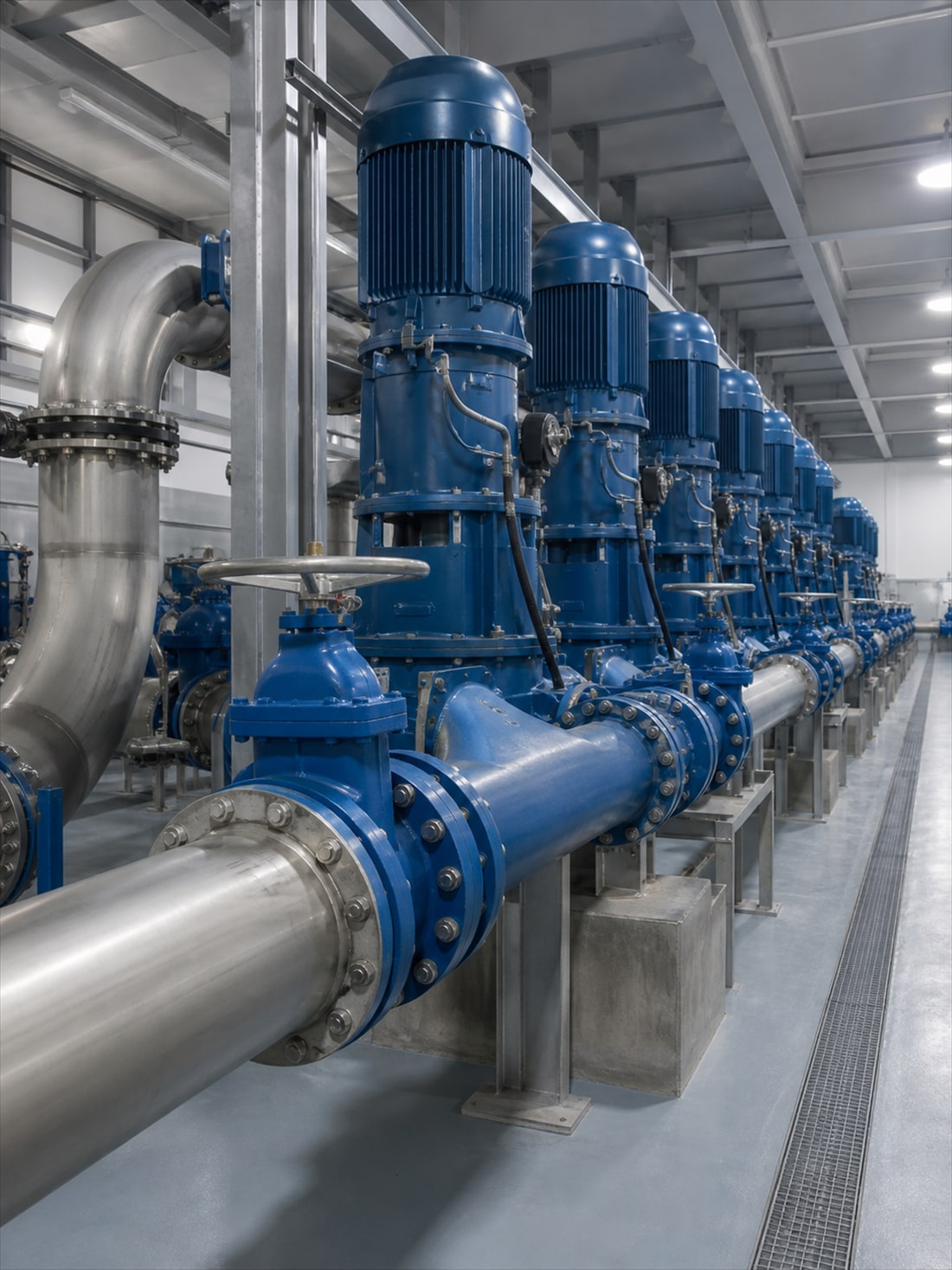

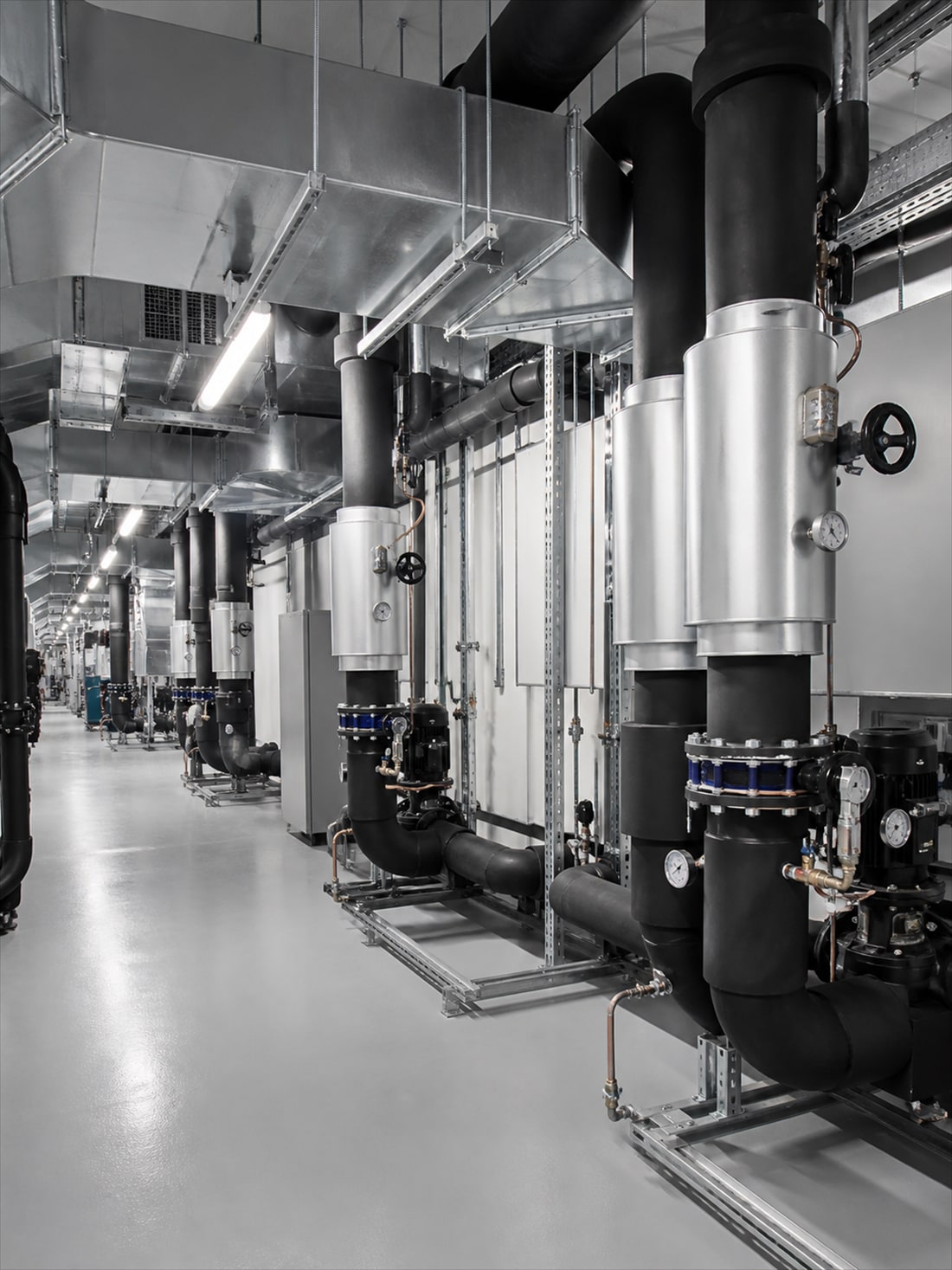

Combined Cooperation Company supplies complete pipe support systems for any type and scale of piping installation. This includes plain or insulated, ferrous or non-ferrous, high or low temperature piping in applications such as HVAC, Oil / LNG, Water Distribution, Sewage Treatment, Plumbing, Fire Protection, Industrial Process Piping, Refineries, Power Generation, Marine installations etc.
The standard types of products offered include :
-
Pipe Hangers, such as Clevis Hangers, for suspended piping
-
Pipe Clamps, such as Heavy Duty 3-Bolt Clamps, for rigid pipe clamping
-
Split Clamps, with welded top nuts
-
Roller based sliding supports, such as Pipe Roller Sets, to permit axial pipe movement
-
Teflon based sliding supports, such as Clamp Shoe Assemblies, to guide movement axially
-
Column supports, such as Pipe Stanchion Saddles
-
Structural Attachments and Brackets, such as Concrete Load Suspension Plates
-
Shields and Saddles, such as Pipe Covering Protection Saddles, for protecting insulation
-
Rubber Support Inserts, for preventing crushing of pipe insulation at point of support
-
Sway Strut Assemblies
-
Engineered Spring Supports (Variable Load Spring Hangers)
-
Seismic Cable Bracing
-
Acoustic Riser Anchors and Guides
In addition, we regularly design customized product solutions for project-specific requirements.
A number of Combined Cooperation Company pipe hanger and support products incorporate enhanced features, not offered by others, which help to improve the quality of piping installations. These features are covered under the individual product pages in the website.
We offer full technical backup in areas like product selection and application, design of the pipe riser support system, positioning of pipe guides, anchors and expansion joints etc.
Product Compliance: All Combined Cooperation Company Pipe Supports comply with Manufacturers Standardization Society (US) Standards MSS-SP58 and MSS-SP69 wherever applicable. Hangers used for sprinkler system piping are UL listed.
Galvanizing Compliance: All supports are supplied electrogalvanized post manufacture as standard, as per ASTM B633 SC3, BS 1706 FE/ZN 12.
Finish Options: Epoxy Powder Coated, Hot Dip Galvanized.
Material Options: Supports are manufactured from low carbon steel as standard. Most types are also available in SS304 / SS316 construction.
EPDM Lining: The lining fitted on Combined Cooperation Company hangers and supports is made exclusively from high grade EPDM. Temperature tolerance from -20°C to 110°C.
